SYMSPE-Base Synchroscope

The SYMSPE-Base Synchroscope measures various electrical parameters of two electrical sources (Aand B).

The SYMSPE-Base Synchroscope measures:

  • Frequency of source A
  • Frequency of source B
  • Phase angle difference (PA – PB)
  • Phase angle rate (differential frequency dPA - dPB)
  • Voltage of source A
  • Voltage of source B
  • Differential voltage (VA – VB)

It also analyzed the status in the form of digital bits and providing it through digital out as a feedback to make the Signals synchronize and make the breaker to Open or Close.

SYMSPE-Enhanced 4 & 6 Channel Synchroscope

The SYMSPE-Enhanced 4 & 6 Channel Synchroscope measures various electrical parameters of two electrical sources (A and D).

The SYMSPE-Enhanced 4 & 6 Channel Synchroscope measures:

  • Frequency of source AFrequency of source B Frequency of source C Frequency of source D
  • Phase angle difference between any two source (PA –PB, PB-PC,PC-PD)
  • Phase angle rate between any two sources (differential frequency dPA–dPB, dpB - dPC, dpC - dpD)
  • Voltage of source A, voltage of source B, voltage of source C, voltage of source D.
  • Differential voltage between any two sources (VA – VB, VB - VC, VC - VD).

It is also analyzed the status in the form of digital bits and providing it through digital out as a feedback to make the signals synchronize and make the breaker to Open or Close.

FEATURES:

  • Available as a portable, battery powered instrument, or panel mounting
  • LCD 2xline or 4xline by 20-character displays are standard
  • RS-232 output feeds directly into a PC (Personal Computer) External analog instruments also available
  • LEDs are available to show voltage, phase and frequency windows of synchronization opportunity
  • RS232 output for data logging
  • Options include an extension lead for measuring across the length of a substation control room, or switchgear chamber
  • Configuration of Parameters Frequency and Amplitude Setting Facility
  • Phase Difference Calculation
  • Analog and Digital displays
  • Manual Mode and Auto Mode Setting MODBUS and TCP/IP Communication Report Generation in Text, Excel formats
  • Data base Management (SQL, Oracle etc.)
  • Backup to provide support for design, application, installation, and maintenance information
  • Availability of communication protocol like IEC 61850, MODBUS, RS485
  • Capable of Controlling relays and switch between feed
  • SPECIFICATIONS:

    HARDWARE:

    Processor:
  • CPU: Intel® Atom™ process N270 1.6GHz CPU
  • Chipset: Intel® 945GSE + ICH7M
  • RAM: Supports one 400MHz or 533MHz DDRII SO-DIMM (2GB Max.)
  • Built-in 300K pixel camera with low light function
  • Interfaces:
  • 1x RS-232 COM Port
  • 1x USB 2.0
  • 1x Power Switch x Reset Button
  • 1x External SATA x AudioPort
  • 1x External SATA x AudioPort
  • 1x External SATA x Audio Port
  • 1X Power
  • 1 X IEC 61850
  • 1 X MODBUS
  • 1 X Relays controller D I/O
  • Expansion:
  • 1 x Wireless LAN 802.11 b/g Module (internal PCIe mini card interface)
  • 1 x Bluetooth Function (internal USB interface, Bluetooth V2.0)
  • Power Requirements:
  • 12VDC
  • Environment:
  • Operating Temperature: -10ºC ~ 50ºC
  • Storage Temperature: -20ºC ~ 60ºC
  • Enclosures:
  • Dimensions: 234mm x 177mm x 43mm
  • Touch Screen: Resistive Type 4-Wire (Touch controller IC is on board)
  • Mounting: Panel, Rack and Wall Mounting
  • Warranty: 1 to 3 Years
  • SOFTWARE:

  • Sym Data Concentrator is full-featured user analyzable developed software for data communication.
  • Collect and transmit of binary status changes, accumulated values and analog values from station RTU’s to SCADA server
  • Digital commands and analog set points from SCADA server are transmitted and received to station RTU’s
  • Data monitoring facilities of different stations with time stamps
  • Configuration of stations, ports etc
  • Dial up connections (Programmable, manual, Queue up)
  • Error Checking and reporting
  • Database Management (Exporting reports in Excel sheet or text format or any third-party application)
  • Reporting about the discontinued meters to the server
  • Flexibility of scheduling time for data collections
  • Highly reliable inworking
  • Enable or disable theports
  • Data Transmission rate support above 115200 bits per second
  • Multiple stations dialup through same port in a queued fashion
  • Modbus communication
  • Protocol Converter For Power And Process Industries

    Scope:

    Protocol converter designed for the conversion of standard protocols like Modbus/OPC/IEC etc. and other proprietary protocols

    To design, integrate, test and deliver an independent, industrial grade protocol concentrator system for establishing the communication between the SCADA server and 24 individual RTU client stations using Modbus protocol

    Sym Protocol Converter is designed which addresses the expanding requirements of utility customers for scaleable, cost effective and rugged converters and gateways for their sub station modernization requirements. The standard version supports a large software library of communication protocols. The devices find applications common in the Power Process and Automation Industries

    Sym Protocol Converters are designed which addresses the expanding requirements of utility customers for scaleable, cost effective and rugged converters and gateways for their sub station modernization requirements. The standard version supports a large software library of communication protocols. The devices find applications common in the Power Process and Automation Industries.

    SymConv is a universal protocol conversion solution for coupling a wide range of protocols and offers maximum flexibility

    FEATURES:

  • Communication to the control stations is executed via different protocols.
  • Password protection
  • Shorter Commissioning time
  • Recording of data flow for a defined period
  • Data from the RTU are converted into the IEC 870-5-104 protocol and transmitted via satellite by means of TCP/IP as transport layer to the control station.
  • High Operating SafetyHigh Operating Safety
  • High protection against unauthorized access
  • Simple Handling
  • Low Development costs
  • Low maintenance costs
  • Low commissioning costs
  • The protocol converters are laid out redundantly and mutually monitor each other via separate RS 232
  • HARDWARE:

  • CE and EMC tested
  • Configuration is carried out via an integrated editor in the device
  • 8 – 16 slots passive backplane
  • The Solid State Disk as mass storage device(under QNX) guarantees a high data integrity MTBF > 1,000,000 h and shock resistance (max. 2,000 G)
  • Redundant Power Supply (optional)
  • Lockable and Dust Filter
  • 19“ housing
  • Interfaces:
  • – Ethernet c e.g. TCP/IP, Sinec-H1

    – RS232/485 UART c e.g. IEC 870-5-101, Modbus

    – Profibus

    –TCT c e.g. Indactic 33, Conitel-2020, Sinuat 8FW

    SOFTWARE:

  • SymConv is available as a software package having features like Start up and stop the system, backup, restoring and editing of configuration parameters, software upgrade and Import configuration information from tables
  • Abstract high-level programming language
  • Task-oriented
  • The configuration is stored in form of source text
  • Reduced complexity
  • Universal operating system and hardware interface, i.e. The OS and hardware is independent of application
  • Targeted to widely used standard components
  • Integrated monitor program for selective feeding and Enquiry of information
  • Changes and upgrades of the software and the operating parameters can be effected directly viamodem and without expensive assignments on site.
  • PRODUCT DELIVERABLES:

  • Software Solution
  • Documentation
  • Customer Training
  • User Manual
  • SUPPORTED PROTOCALS :

  • IEC 60870-5-101, Dialup Master
  • IEC 60870-5-101, Master
  • IEC 60870-5-103, Master
  • IEC 60870-5-104, Master
  • ADLP-80, Slave
  • ANSI X3.28, Master
  • Conitel-2020, Slave
  • CDC Type II, Slave
  • CDC Type I, Slave
  • DNP V3.00, Master
  • DNP V3.00, Slave
  • Fuji, Slave
  • HNZ 66 S 11/15, T63, Master
  • HNZ 66 S 11/15, T63, Slave
  • HITACHI HC4300, Master
  • HITACHI HC4300, Slave
  • Harris-5000/6000, Slave
  • Indactic 21, Master
  • Indactic-23, Master
  • Indactic 23, Slave
  • Indactic 33/41, Master
  • Indactic 33/41, 2033, Slave
  • MAINOVA, Master
  • Modbus, Master
  • Modbus, Slave
  • Modbus TCP/IP, Master
  • Modbus TCP/IP, Slave
  • OPC DA 3.0 Client
  • OPC DAXML 1.01 Server
  • OPC DA 2.05 Server
  • Profibus-DP, Slave (ORSI)
  • Profibus-DPVO, Slave (Extended Ver.)
  • IEC 60870-5-101, Slave
  • IEC 60870-5-103, Slave
  • IEC 60870-5-104, Slave
  • P6008, Master
  • SISA, QD2 Slave
  • Recon, Slave
  • Sinuat 8FW (PCM), Slave
  • SC1801, Slave
  • SEAB 1F, Master
  • SEAB 1F, Slave
  • SNMP, Client
  • Simadyn-D, Master
  • Sinuat ST1, Slave
  • Simatic TDC, Master
  • Telegyr 809, Slave
  • XMAT, Master
  • Profibus-DPVO, Slave
  • P6008, Slave
  • Energy Monitoring Sytems

    FEATURES:

  • Configuration of Parameters
  • Perform online and post processing of the acquired data’s
  • Storing of Acquired data’s in formats like binary ,ASCII etc
  • Efficient timing and sychronization of data’s
  • Recording of online data’s and playback of stored data’s
  • TCP/IP communication
  • Acquired dataviewable in a spreadsheet (Excel )or Flat file
  • Shorter commissioning time
  • DELIVERABLES:

  • EMS
  • EMS_CBL_50- Cables
  • EMS_TB_50-Terminal block
  • Power Monitoring and Analysis Products

    Symmetric Technologies is proud to introduce Powerside’s exceptional range of Power Analyzers and IoT system monitoring devices. Just about every commercial and industrial facility depends upon constantly available, high quality power. Powerside’s devices detect power conditions and disturbances that can impact plant productivity, either through disruptions to supply or through damage or premature failure of equipment. Persistent power quality monitoring delivers priceless information to predict and avoid failure, and to reduce the risk of repeated failures.

    A. Monitoring and Analysis Products

    I. Power Analyzers

    Simple, intuitive data presentation – anywhere, any time. Access all your data no matter where you are – PQube alerts come to you. You can also dig deeper into the data, thanks to a built-in web server that lets you access the information anytime online. You receive ultra-precise measurements in an easy-to-understand format, with no software to buy, install, learn, or maintain.

    Proactive alerts. Know the moment a power quality event threatens your site or process. PQube 3 devices automatically push event-triggered data to your smartphone or email account.

    Beyond power quality. Record anything related to energy consumption, power quality, manufacturing processes and your site’s environment. PQube 3 units have analog inputs that can measure environmental conditions at your site, as well as process parameters like a motor’s RPM speed, fuel level, and more.

    The versatile PQube 3 family of products provides solutions for a wide range of applications and industries

    FEATURES:

  • Auto-configures, it auto-detects the mains frequency, wiring configuration, and nominal voltage
  • Use on single or three-phase loads or a combination of loads
  • 4-quadrant ANSI Class 0.2 revenue–grade energy on 8 or up to 14 single-phase energy metering channels
  • Data accessible remotely or by user-defined image-based reports delivered by email
  • No software or transformer to install
  • An exhaustive array of inputs from electrical to environmental
  • Interface available in over 13 languages
  • Touch screen display and anti-tamper lid
  • 32 GB of internal flash memory holds years of data and events
  • Certified UL, CSA, ROHS, FCC, IEC, ANSI, TUV, and EMC compliant

  • Benefits:

  • Versatile, use as power analyzer, controller, voltage monitor, and a revenue-grade meter
  • Get alerted to power, environmental, or process parameter symptoms before damages happen
  • Monitors, records, and reports in real-time 24/7/365
  • Pinpoints the root cause of power quality or identifies unrelated issues
  • Installs anywhere, snap onto a DIN rail, pole mount, wall mount or rack mount
  • Reduce electricity costs and equipment failure
  • Reduce nuisance tripping or unexplained resetting of control devices
  • Use to accurately allocate electric rate structure costs in commercial buildings
  • Provides daily, weekly, or monthly understandable and actionable data, upon disturbance
  • FREE Report Writer companion software and Modbus real-time dashboard

  • Applications:

  • Semi-conductor manufacturing and semi-conductor tools
  • Diagnostic imaging equipment systems in hospitals or health facilities
  • Data centers, telecom equipment and towers
  • Offshore platforms, marine vessels or remote operation vehicles
  • Airports and railway stations
  • Commercial and Industrial facilities


  • PQube 3 Power Analyzer

    Product highlights:

    Power analyzer, real time sensor and revenue-grade meter. Monitors up to 2 three-phase loads, plus environmental and process parameters.

    It records nearly every type of AC power disturbance – including 4 MHz sampling of impulses – and it is an IEC 61000-4-30, edition 3 Class A certified, ultra-precise revenue-grade energy meter. Monitor up to two three-phase loads, or eight single-phase loads with a single instrument.

    It goes beyond AC power too. With ENV2 it Records environmental data – such as temperature, humidity and barometric pressure, vibration, 3-axis acceleration – as well as process parameters From 3 rd party sensors, including torque, RPM, fuel level, water flow, and more. Easy to install, easy to use! Delivers ultra-precise event results immediately to your inbox.

    Main Features:

  • Installs easily with an ultra-compact footprint
  • Connects directly to voltages up to 690 V
  • Certified for Class A power quality according to IEC 61000-4-30 Ed3
  • Computes 4-quadrant ANSI Class 0.2 revenue–grade energy on eight single-phase channels
  • Monitors AC & DC power simultaneously as well as process parameters with four additional AC/DC analog channels
  • Detects and records high-frequency impulses at 4 MHz
  • Measures in real time and records 2 kHz ~ 150 kHz emissions
  • Auto-detects the mains frequency, wiring configuration and nominal voltage
  • Holds years of data and thousands of events via 32 GB of internal flash memory


  • PQube 3e Multiple load power quality monitoring

    Product highlights:

    Power analyzer, real time sensor and revenue meter. Monitors up to 4 three-phase loads, plus environmental and process parameters. PQube 3e replaces four traditional revenue-grade meters in addition to providing advanced power quality monitoring. Plus you get environmental sensing, and external process measurements, with the same ultra-precise results delivered immediately to your inbox.

    Features:

  • Installs easily with an ultra-compact footprint
  • Connects directly to voltages up to 690 V
  • Certified for Class A power quality according to IEC 61000-4-30 Ed3
  • Computes 4-quadrant ANSI Class 0.2 revenue–grade energy on fourteen single-phase channels
  • Monitors AC & DC power simultaneously as well asprocess parameters with four additional AC/DC analog channels
  • Detects and records high-frequency impulses at 4 MHz
  • Measures in real time and records 2 kHz ~ 150 kHz emissions
  • Auto-detects the mains frequency, wiring configuration and nominal voltage
  • Holds years of data and thousands of events via 32 GB of internal flash memory


  • PQube 3r Ultra accurate power analyzer and versatile controller

    Product highlights:

    Power analyzer, real time controller and revenue meter. Has 4 built-in programmable relay outputs that can be individually assigned to a specific disturbance.

    Features:

  • 4-quadrant ANSI Class 0.2 revenue–grade energy
  • 2 three-phase loads or 14 single-phase loads or any combination
  • Connects direct to voltages up to 690 V
  • Class A IEC 61000-4-30 Ed3 certified
  • Detects and records high-frequency impulses at 4 MHz
  • Measures and records 2 kHz~150kHz emissions
  • Monitors AC & DC power simultaneously as well as process parameters with 4 additional AC/DC analog channels
  • 32 GB internal flash memory


  • PQube 3v Power Analyzer

    Product highlights:

    When voltage quality compliance is required – that’s when you need the PQube 3v.

    It does a great job verifying electricity delivered at the point of common coupling (PCC), as well as diagnosing equipment malfunction. Still the same ultra-precise results delivered immediately to your inbox.

    Features:

  • Installs easily with an ultra-compact footprint
  • Connects directly to voltages up to 690 V
  • Certified for Class A power quality according to IEC 61000-4-30 Ed3
  • Monitors AC & DC power simultaneously as well as process parameters with four additional AC/DC analog channels
  • Detects and records high-frequency impulses at 4 MHz
  • Auto-detects the mains frequency, wiring configuration and nominal voltage
  • Holds years of data and thousands of events via 32 GB of internal flash memory.
  • USB stick enables easy access to data if the unit is not connected to a LAN


  • PQube 3 Portable Power Analyzer

    Product highlights:

    Self-powered, ready-to-go portable kit designed for a quick install and temporary power measurement campaigns.

    Features:

  • 4-quadrant ANSI Class 0.2 revenue–grade energy
  • Up to 2 three-phase loads
  • Connects direct to voltages up to 690 V
  • Class A IEC 61000-4-30 Ed3 certified
  • Detects and records high-frequency impulses at 4 MHz
  • Measures and records 2 kHz~150kHz emissions
  • Monitors DC power and process parameters with 4 additional AC/DC analog channels
  • 32 GB internal flash memory


  • PQube 3 Accessories

    Below Accessories are more comfortable with PQube-3 power analyzer, PQube-3e, PQube-3r, PQube-3v and Portable PQube.

    1. AC/DC Interface Modules

  • ATT1-1200 V - AC/DC Voltage Attenuator ±1200 VDC / 600 VAC
  • ATT1-600 V - AC/DC Voltage Attenuator ±600 VDC / 300 VAC
  • ATT2-1200 V - AC/DC Voltage / Current ±1200 VDC/600 VAC
  • ATT2-600V - AC/DC Voltage / Current ±600VDC/300VAC
  • CTI-1A CT Interface Module
  • CTI-5A CT Interface Module
  • RM8 – Relay Extension Module
  • VAT1-600: Three-Phase AC/Dual DC Voltage Attenuator

  • 2. Power Supplys & Backups

  • PM1 Power Manager Module
  • PM2 Power Manager Module with AUX Output
  • UPS1 Uninterruptable Power Supply

  • 3. Current Sensors

  • DC Hall Effect Current Sensors
  • FCT-XX-3000A Flexible Current Sensor
  • Powerside Precise CT Series
  • Powerside Ultra-Precise CT Series

  • 4. Environment Sensor

  • ENV2 - Envirosensor

  • 5. Time-And-Synchronization

  • GPS Receiver and Antenna Cables for Rugged and Portable Installations
  • GPS Synchronization Package for PQube 3

  • 6. Brackets and Mounting Kits

  • Magnetic Mounting Kit for Remove Antenna Bracket
  • Pole Mounting Kit for Remote Antenna Bracket
  • Remote Antenna Bracket
  • Rugged Wall Mount Installation Kit

  • 7. Circuit Breakers

  • CB-1P - 1AMP Single Phase Circuit Breaker
  • CB-3P - 1AMP Three Phase Circuit Breaker

  • 8. DIN Rail Accessories

  • Aluminum DIN-Rail Kit
  • Shield Wire Grounding Block
  • Shield Wire Grounding Terminal

  • 9. Enclosures

  • DIN Rail Enclosure



  • PQube 3 Software

    1. PQube 3 Modbus Client

    This FREE Windows compatible software, remote meters, scopes, strip charts, and logging.

    Key Features

  • Data logging
  • Real-time
  • scope meter with waveforms
  • voltage and current harmonics
  • 2 kHz – 150 kHz supra harmonics
  • Remote connection verification
  • 4-quadrant energy counters include Wh, Vah, VARh, and PF
  • Access to more than 3000 parameters
  • Live meter value recording available in CSV format

  • 2. PQube 3 Report Writer

    A FREE multi-language compatible customizable reporting application that generates custom or default measurement data reports, such as EN-50160 and IEEE-519 reports, as a Word document that can be fully customized.

    Key Features

  • Environmental parameters including ambient temperature, barometric pressure, humidity, etc
  • Reports include
  • current channels, analog, and digital channels
  • HF impulse and RVC events and 2kHz-150kHz conducted emissions
  • Sags and swell interruptions
  • harmonic and power consumption evaluations


  • Highlighted Features:

    1. PQube 3 - Delivers Information You Can Use Immediately

    Features:

  • Monitors AC & DC power (simultaneously), and also your process parameter like speed or flow, with additional analog AC/DC channels
  • Enhances the power diagnostic by also measuring the environment conditions with advanced Environment Sensor probes
  • Your campaign measurements are stored for years, and continuously stored as 1 min (min/max/average) trends daily, or 5 min trends, weekly or monthly. No gaps, you don’t miss a single cycle
  • You can store several thousands of events (32 GB flash memory)
  • Extensive library of waveform triggers on voltage magnitude, voltage HF impulses, frequency, currents inrush, AC/DC channels, and more
  • All measured parameters are available every half-second in real-time (via ModbusTCP/IP, DNP3.0 or SNMP)
  • Trends and events can be quickly accessed using your Internet browser – no software needed – or just insert the PQube 3 USB thumb drive into your computer
  • Interface available in more than 13 languages– the graphs can be delivered in two simultaneous languages (ideal for international teams)

  • 2. PQube 3 - Installs Easily

    Features:

  • Connects the mains voltage directly into the PQube 3 terminals up to 600VAC nominal
  • Connects safely and quickly to currents with split-core CTs or Flexible (Rogowsky coils) CTs
  • Auto configures by auto-detecting the mains frequency, wiring configuration and nominal voltage
  • Allows easy wiring verification and provides status via the embedded color touch screen, can be operated with protection gloves
  • Can manage connection wiring mistakes after installation is done, via configuration

  • 3. PQube 3 - Is Easy To Use

    Features:

  • Easy changes in configuration can be done on site with a USB thumb drive, or remotely via Web browser, FTP or email
  • Free firmware updates can be done on site with a USB thumb drive, or remotely via Web browser or FTP

  • 4. Multi-Circuit, Revenue-Grade Accurate Energy Meter

    Features:

  • Easily connects current channels with split-core CTs or Flexible (Rogowsky coils) CTs
  • Supports 8 X single phase circuit or two X 3-phase circuits
  • Complies with ANSI C12.20 Class 0.2 revenue grade accuracy(Class 0.2S IEC 62053-22, too! )
  • Computes 4-quadrant energy (import/export, reactive/capacitive)
  • Computes active/reactive/apparent powers, Power Factor or DPF (CosPhi)
  • Supports user-defined demand intervals (3, 10, 15, 30, 60 mins)
  • Publishes real-time values of all powers and energies (Modbus TCP/IP, DNP3.0, SNMP)

  • 5. Above And Beyond Power Monitoring: Environment And Process

    Features:

  • Enhance your diagnostic by adding:
  •
  • Temperature, humidity, barometric pressure, shock and sesimic measurements, vibration level with PSL’s advanced EnviroSensors (ENV2)
  •
  • External sensors measurements, e.g .level gauges, solar irradiance, flow, speed, battery charge and consumption, with PQube 3 four analog AC/DC channels
  • Detect and record mechanical shocks, seismic disturbances

  • 6. PQube 3 - Has The Best Power Quality And Power Analyzer Specs

    Features:

  • Synchronized sampling at 512 sample per cycle on ALL channels (includes eight currents, four AC/DC analog, one digital)
  • Up to 4 MHz high frequency impulse detection and recording, on one voltage channels or 1 MHz detection on 4 voltage channels
  • Fully compliant with Class A requirements of the measurement method IEC 61000-4-30 Ed3
  • Sags/swells/interruptions on mains voltage, (IEC 61000-4-30 Ed3 /IEEE 519), also on analog AC/DC channels
  • Voltage, current harmonics and inter-harmonics according to IEC 61000-4-7
  • Voltage Flicker Class F1 according to IEC 61000-4-15
  • 2 kHz-150 kHz conducted emissions according to IEC 61000-4-30 ed3 (real time and recorded)
  • Monitoring of 2 X 3-phase voltage synchronized measurements (dual mode)
  • Clock synchronization via NTP, SNTP, or GPS
  • Waveform recordings up to 128 cycles, and up to 16 seconds RMS, upon event occurrence
  • Months of measurement data (32 GB embedded flash memory)
  • Embedded Web server, FTP server, email server, and embedded firewall via Web browser or FTP

  • 7. PQube 3v Installs Easy

    Features:

  • Connects the mains voltage directly into the PQube 3v terminals up to 600VAC nominal
  • Auto configures by auto-detecting the mains frequency, wiring configuration and nominal voltage
  • Allows easy wiring verification and provides status via the embedded color touch screen, can be operated with protection gloves.
  • Can manage connection wiring mistakes after installation is done, via its configuration

  • II. Power Sensor- PQ1

    Overview

    PQ1 power quality sensor detects sags, swells, interruptions, and impulses in as short as 500 nanoseconds. And because of its low price, you can buy ten to twenty for the price of a single traditional power quality monitor. It’s your go-to sensor to quickly defend against power quality problems.

    Adaptable, Reliable, Inexpensive

    PQ1 detects in 500 nanoseconds, higher impulse and voltage swell events, and significant and minor voltage sags. It immediately signals each event from the front panel LEDs as well as to a computer log file using relay contacts. Our power quality sensor adapts to international voltages between 100VAC and 240VAC, and operates at 50 Hz, 60 Hz, and 400 Hz. Higher voltages, including utility distribution voltages and input voltages up to 600 vrms can be monitored by hooking it up to an external transformer

    The PQ1 is small and simple to use, with 16 pre-programmed industry-standard depth/duration response curves that can be programmed application specific. The PQ1 is a single-phase monitor that can also be used phase-to-phase or you can combine three PQ1’s for phase-to-neutral on three-phase power systems.

    Because the PQ1 costs less than one-tenth of traditional power quality monitors, it quickly pays for itself as it increases equipment up time leading to higher customer satisfaction ratings.


    Features:

  • Affordable, reliable, and compact
  • Pre-programmed to 16 industry-standard thresholds, no software required
  • Easy to install on a DIN rail mount,AC in, relay contacts out
  • Real-time event detection with 0.5% accuracy
  • Certified CE, TUV, UL

  • Benefits:

  • Detects sags, swells, interruptions, and impulses
  • Captures impulses as short as 500 nanoseconds
  • Automatically adjusts to 50Hz, 60Hz, or 400Hz
  • Direct connection to 100 Vrms ~ 240 Vrms
  • Can be used at 277 Vrms ~ 600 Vrms with external step-down transformer
  • Combine three PQ1’s for 3-phase applications

  • Applications:

  • Semiconductor manufacturing tools.
  • Food inspection equipment
  • Medical laboratory equipment
  • SCADA and PLC systems
  • Elevator controls
  • Low-cost substation power quality monitoring
  • Machine tools, HVAC controls, ASD’s
  • Rack mount servers in data centers and telecommunication centers

  • III. Industrial & Grid Power Testing

    1. Industrial Power Corruptor

    Overview

    Powerside’s Industrial Power Corruptor (IPC) generates bad quality power, reliably and repeatedly. It is the standard generator for equipment certification: SEMI f47, IEC 61000-4-11, IEC 61000-4-34. Once it is connected to AC power and equipment under test, all tests can be run from user-friendly front panel interface. There is no need to connect and disconnect voltage probes, current sensors, etc. Tests can be done both rapidly and safely with personnel of any experience level

    Features

  • High power handling up to 480Vrms nominal, 200 amps continuous
  • Creates voltage sags and swells, from 0% to 125% of nominal, from 1 cycle to 30 seconds
  • Built-in 28 channel data acquisition system/digital oscilloscope with voltage and current sensors
  • User-friendly front panel control switches and displays
  • Optional spectrum analyzer and vector scope optimized for power system harmonic monitoring
  • Safe, knob selected, true phase-to-phase sags and swells – no neutral required, no manual rewiring
  • Customized padded rugged polyethylene shipping crate
  • Compliant with SEMI F47, IEC 61000-4-34, IEC 61000-4-11

  • Benefits:

  • Optional power flow monitoring
  • Compact size for convenient transport to testing sites
  • Evaluates the response of industrial equipment to power disturbances
  • Measures energy consumption at all stages of a process or cycle
  • Use to design and test improvements for equipment
  • Re-engineers the process flow to optimize energy use

  • Applications:

  • Microprocessor and semiconductor manufacturing
  • Continuous process manufacturing (biotech, automotive, plastics)
  • Elevator and other large building controls

  • VI. Micro-Synchrophasors

    Micro PMU

    Overview

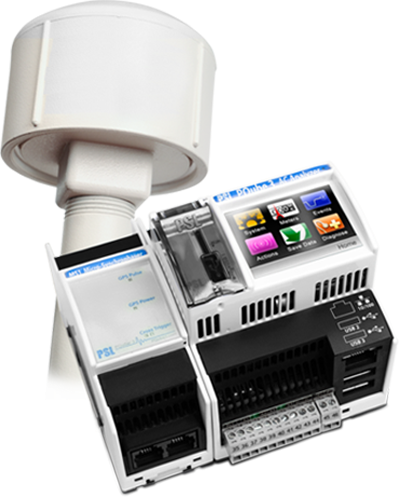

    The microPMU is a synchrophasor that high speed records and streams real-time stamped data measurements of electricity, including voltage, current, and frequency, as phasors at different points on a utility electric grid transmission system. Use a synchrophasor for wide area measurement and control to understand complex and dynamic power grid applications in utility distribution grids and microgrids.

    Micro Synchrophasors

    Our microPMU works like a microscope with micro-second resolution and accuracy needed to understand the distribution of power grid applications. The microPMU data provides grid operators with a precise and high-resolution image and pmu measurements of the power grid in real-time.

    Our microPMU takes PMU measurements at 60 or 120 observations per second at 60 Hz mains and 50 or 100 obs/sec at 50 Hz mains. Each measurement is time-stamped according to a common time reference using GPS. The time-stamping of the measurements allows data from different locations and utilities to be time-aligned (synchronized) and combined together. This data provides a precise and complete overview of the entire gride interconnection.

    This time-sensitive information helps to alert the grid operators to grid stress early on, potentially avoiding power outages and maintaining power quality.

    The microPMU can be connected to voltages up to 600VAC L-L 48VAC, which makes it ideal for interfacing with low voltage output signals or medium voltage sensor output. It’s easy for system operators to install. It can be installed in electrical panels, on distribution poles, in pad mount transformers, and more.

    The microPMU is also ideal for smart grid projects that need precise synchrophasor measurements to investigate grid stability problems and to answer questions on blockages.

    Features

  • Precise phasor measurements: TVE 0.01%
  • Connects to voltages up to 600VAC L-L 48VAC
  • Ideal for interfacing to MV sensor outputs, or low voltage output signals
  • Simultaneous recording and streaming of synchrophasors
  • Fast recording and streaming rate: 100/sec at 50Hz and 120/sec at 60Hz
  • Voltage and current phasors, frequency, active / reactive powers, power factor
  • Fully compatible with OpenPDC, and with our microPMU application software
  • Records 30 days of synchrophasor data measurements, data is downloaded via FTP or web pages
  • Free configuration and firmware updates
  • Precise mode for grid stability analysis or low latency mode for control applications
  • Easy to install in electrical panels, on power utility distribution poles, pad mount transformers
  • Supports connections via PTs and CTs
  • Fully isolated GPS receiver and antenna with cable delay
  • Compliant with IEEE C37.118.1-2011 and C37.118.2-2011

  • Benefits:

  • Protects equipment from harmonics caused by other equipment
  • Increases operation reliability reducing maintenance costs
  • Extends the lifetime of electrical equipment
  • Provides additional capacity in an existing electrical network
  • Eliminates the need for engineering analysis
  • Reduces energy costs by lowering CO2 emissions

  • Applications:

    The basic system building blocks of an application are GPS satellite-synchronized clocks, phasor measurement units (PMUs), a phasor data concentrator (PDC), communications equipment, and visualization software. Some applications for the microPMU include:

  • Understanding of wide-area control
  • System model validation
  • Determining stability margins
  • Maximizing stable system loading
  • Islanding and restoration detection
  • Transmission path and congestion management system-wide disturbance recording
  • Observation of dynamic system responses
  • Resource integration
  • Real-time control applications using the IEEE C37.118.2-2011 protocol

  • B. Applications

    I. Data Centers - AC (And 380v DC)

    Overview:

    Use a PQube 3 to track the quality of incoming utility power, and your own conditioned power, to demonstrate the value of UPSs and PDUs. If you have a new 380V DC data center, use your PQube 3’s unique ability to monitor both AC and 380V DC disturbances, and to track both AC and DC power flow. Your PQube 3 will also record everything from temperature, humidity, barometric pressure, and even earthquakes – it’s like an aircraft’s “black box” for data center reliability, and it’s as easy to use as a digital camera.

    II. Telecom And Base Stations

    Overview:

    Your standard, inexpensive PQube 3 tracks disturbances on both AC and 48VDC power — no options required — and reports precision power flow on both systems. Use your PQube 3’s barometric pressure sensors to detect clogged air filters. At shared power locations, you can even use your PQube 3’s many AC current channels as precision revenue-grade meters. Remote locations with generator backup can use PQube 3 analog channels to measure fuel level and battery charge.

    III. Aircraft Power And Airports

    Overview:

    Standard low-cost PQube 3 analyzers all monitor 400 Hz power — no options required — for both single-phase and three-phase aircraft systems. And PQube 3s can simultaneously record disturbances on DC battery voltages and currents, at more than 30,000 samples per second on every cross-triggered channel. All of the recordings are stored on industrial flash memory in open-source files, and can be extracted with a standard USB thumb drive. And at airports, government agencies often use PQube 3 analyzers to monitor critical power infrastructure, like backup generators, to document that they have been operated under load, and on the proper test schedule.

    IV.Government And University Research

    Overview:

    Government laboratories and universities around the world use the PQube 3 as their AC power research instrument of choice. Why? The measurements from PQube 3s are fully certified — each PQube 3 comes with an individual NIST-Trace Certificate, and is U.L.-listed — and are entirely in open-source file formats, ideal for researchers. And the precision and accuracy of the low-cost PQube 3 are only exceeded by laboratory reference instruments.

    V. Railroads And Transport

    Overview:

    Your low-cost PQube 3 can serve like an aircraft’s “black box” for your railroad power — it captures every disturbance. Standard PQube 3s can monitor 16.7 Hz systems, as well as 50 Hz and 60 Hz — no options required. And you can even use it for clever functions like monitoring the power signature of rail switch motors, which can help predict mechanical failures and motor failures before they happen.

    Everything your PQube 3 records is available in open-source files, and your PQube 3 will email the files directly to your desk – no software required. It’s the smallest, simplest, most certified power instrument available.

    VI. Electric Vehicle Charging

    Overview:

    EV chargers can be damaged or disrupted by power disturbances all over the world. Your PQube 3 is the ideal “aircraft black box” for recording every type of power disturbance, logging the waveforms, and emailing them to you. Or you can extract them with a standard USB thumb drive – in either case, no software is required. You can even use your low-cost PQube 3 to record DC voltages and currents – 30,000 samples per second is standard — providing independent confirmation of charger performance, and cross-triggered DC disturbances. It records temperature, humidity, barometric pressure, earthquakes, and mechanical jolts, too.

    VII. Military Bases And Ships

    Overview:

    A low-cost PQube 3 is the ideal AC power monitor for military bases. It detects and records every type of power disturbance at 50 Hz, 60 Hz, and 400 Hz; monitors how well the grid switches to backup generators, and how well it switches back; and it keeps recording even if it gets disconnected from the base’s ethernet backbone. It’s like an aircraft “black box” for AC power. On board Navy ships, it monitors both shipboard power and shore power, with better-than-revenue-grade accuracy and full NIST-certification. On modern advanced DC-powered ships, the PQube 3 is fully capable of recording and reporting disturbances on multiple high-voltage DC buses. The PQube 3 is perfect for naval research.


    Disclaimers:

    All specifications subject to change without notice. © Powerside 2020
